Our Products

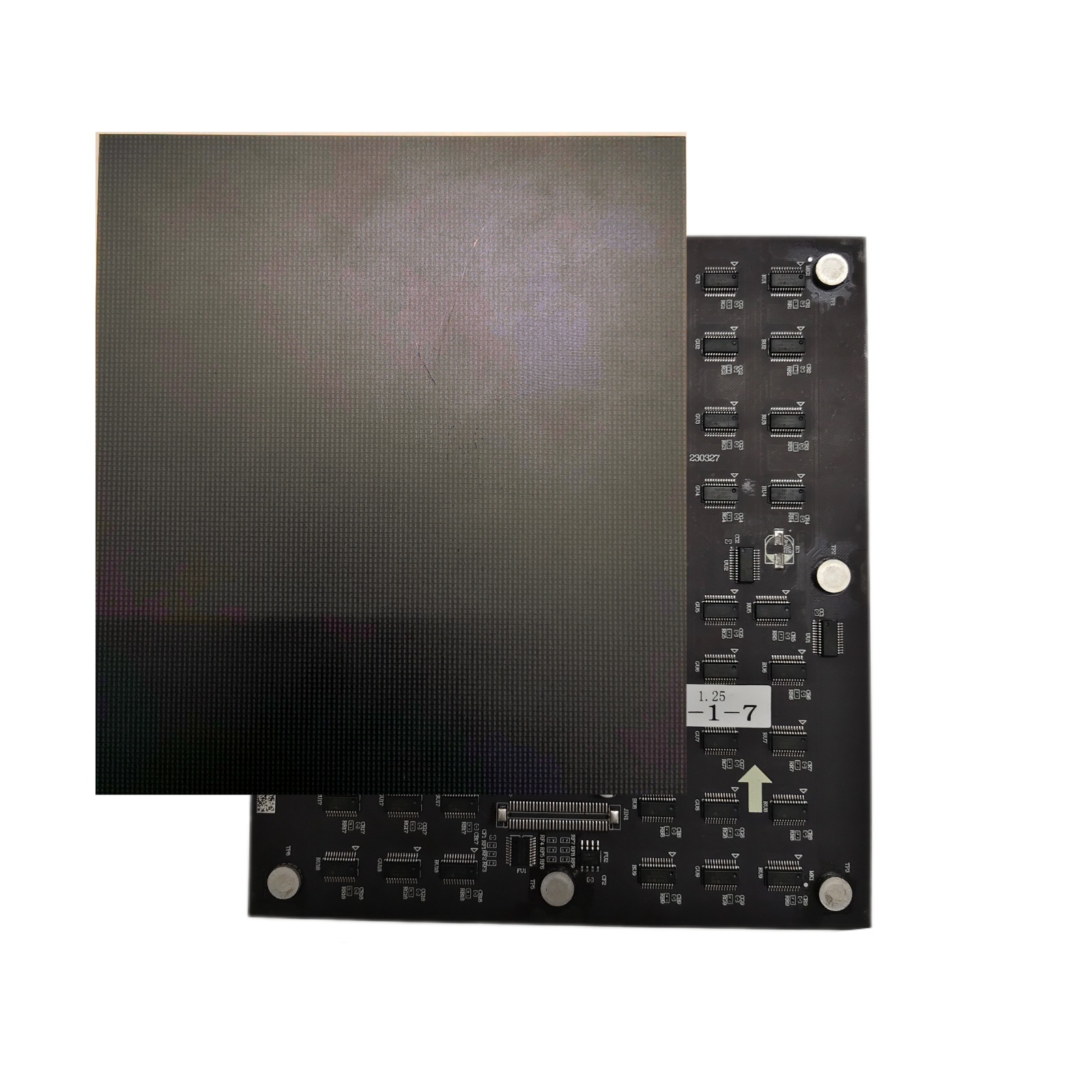

TG-1

Specification	Value
Pixel Pitch (mm)	2.5
Module Resolution (Dots)	128*64
Pixel Density (Dots/㎡)	160000
Energy Consumption Level	Grade 1
Supply Voltage (V)	≥4.5
Brightness (cd/㎡)	500-600
Color Temperature (K)	6500~18000 Adjustable
Contrast	≥5000:1
Driving IC	Energy-Saving Driving IC
Gray Scale (Bit)	12~13 Adjustable
Refresh Rate (Hz)	≥1920
Maximum Power Consumption (W/㎡)	≤457
Average Power Consumption (W/㎡)	≤153

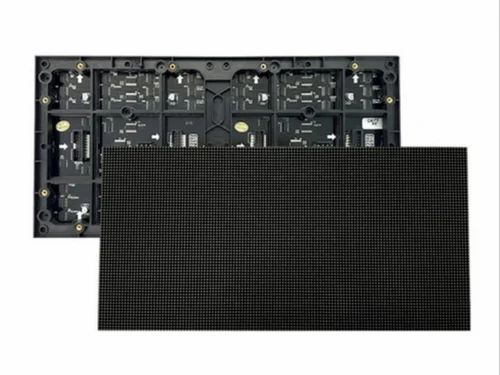

TG-2

Specification	Value
Pixel Pitch (mm)	1.25
Module Resolution (Dots)	256*128
Pixel Density (Dots/㎡)	640000
Energy Consumption Level	Grade 1
Supply Voltage (V)	≥4.5
Brightness (cd/㎡)	600-700
Color Temperature (K)	6500~18000 Adjustable
Contrast	≥5000:1
Driving IC	Energy-Saving Driving IC
Gray Scale (Bit)	13~14 Adjustable
Refresh Rate (Hz)	≥4200
Maximum Power Consumption (W/㎡)	≤580
Average Power Consumption (W/㎡)	≤194

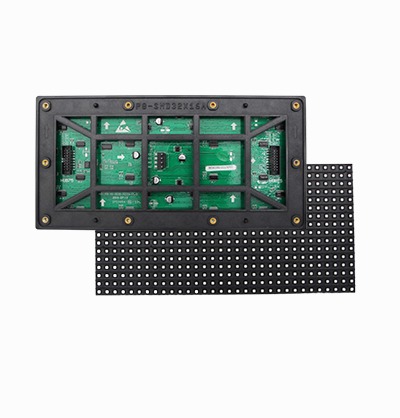

TG-3

Specification	Value
Pixel Pitch (mm)	8
Scan	1/5
Module Resolution (Dots)	320*160
Pixel Density (Dots/㎡)	15625
Energy Consumption Level	Grade 1
Supply Voltage (V)	≥4.5
Brightness (cd/㎡)	5500-7000
Color Temperature (K)	6500~18000 Adjustable
Contrast	≥5000:1
Driving IC	Energy-Saving Driving IC
Gray Scale (Bit)	14 Adjustable
Refresh Rate (Hz)	≥4200
Maximum Power Consumption (W/㎡)	≤866
Average Power Consumption (W/㎡)	≤289

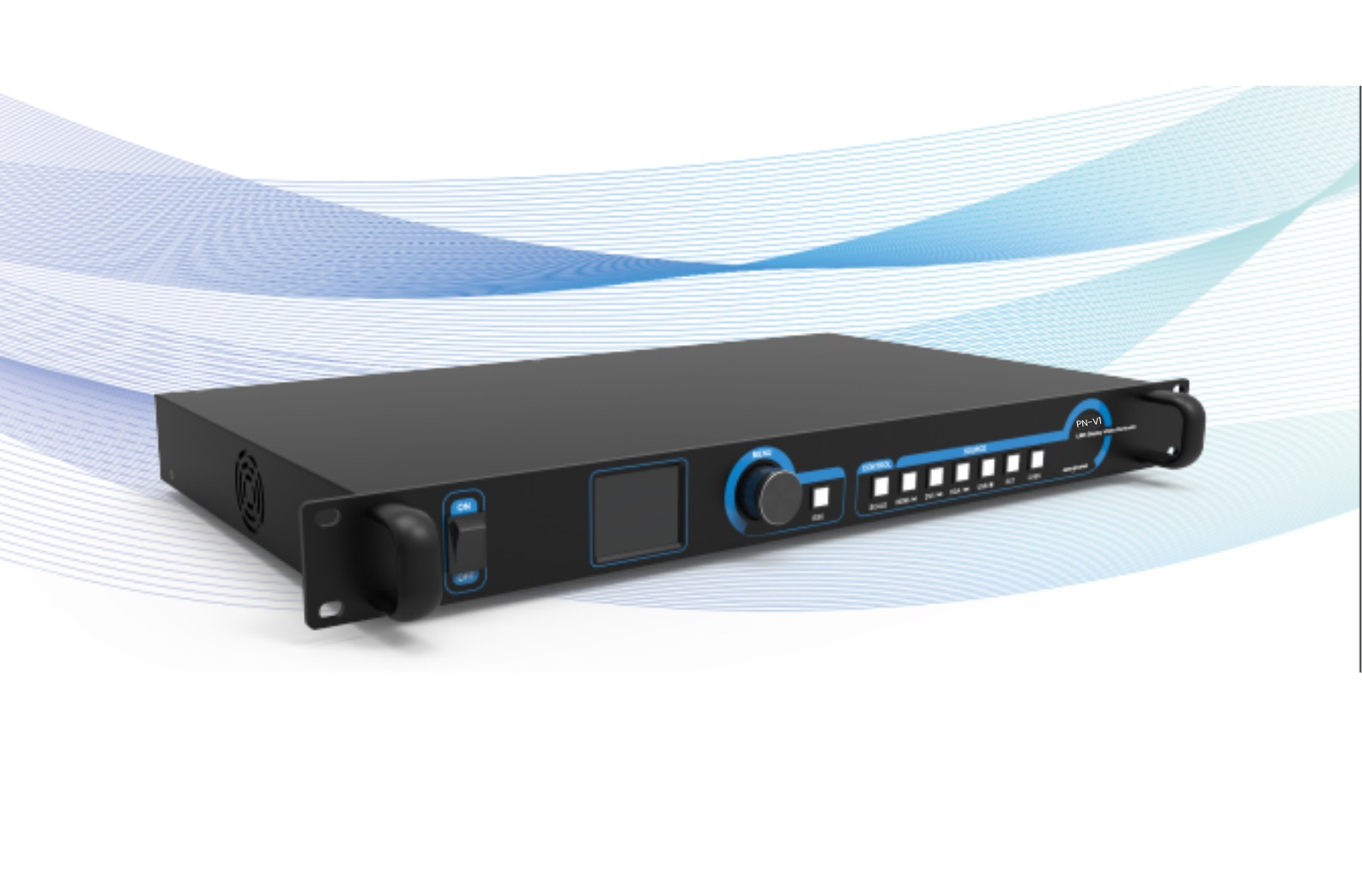

PN-V1

Connector	Quantity	Description
VGA	1	Up to 1920×1080@60Hz video inputs, downward compatible
CVBS	1	PAL/NTSC standard video inputs
AUDIO	2	Audio input and output connectors

Connector	Quantity	Description
Ethernet	2	Ethernet output ports for connecting receiving card

Connector	Quantity	Description
Ethernet (RS232)	1	For connection with the central control device
USB (Type B)	1	For device program update

Connector	Quantity	Description
Power connector	1	AC100V~240V 50/60Hz
Overall power consumption	12 W
Dimensions		482.6 mm × 300.2 mm × 44.4 mm
Weight		2810 g

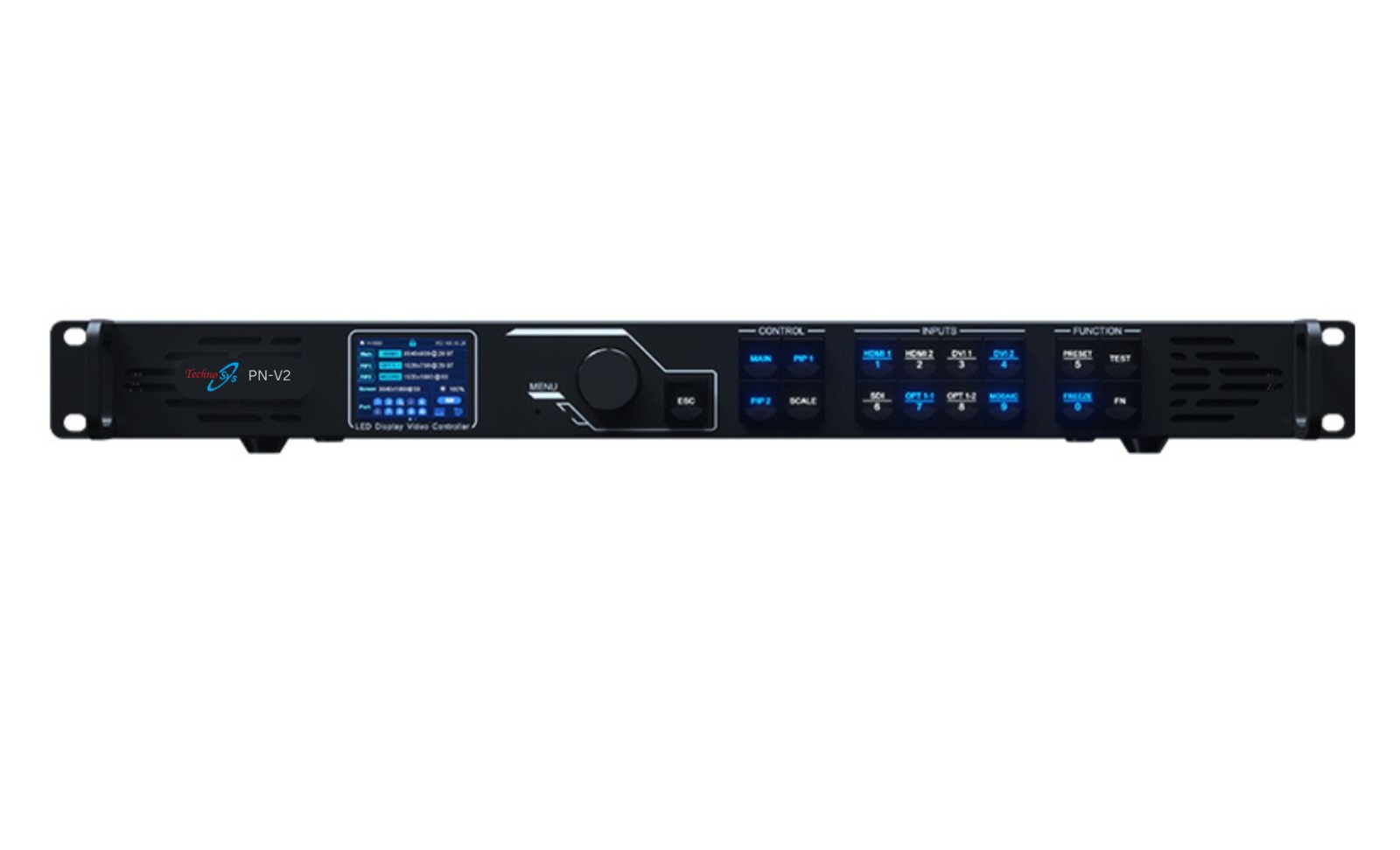

PN-V2

Category	Specification	Value
Physical Specifications	Dimensions	483.6 mm x 351.2 mm x 50.1 mm
	Net weight	4 kg
	Gross weight	5.8 kg
	Cooling	Natural cooling, 2 fans, and aluminum base plate cooling
Input Voltage	Voltage Range	AC 100~240V
	Frequency	50/60Hz
	Power Consumption	≤15W
Temperature	Operating Temperature	-10°C~45°C
	Storage Temperature	-40°C~80°C
	Humidity	10%-90%RH

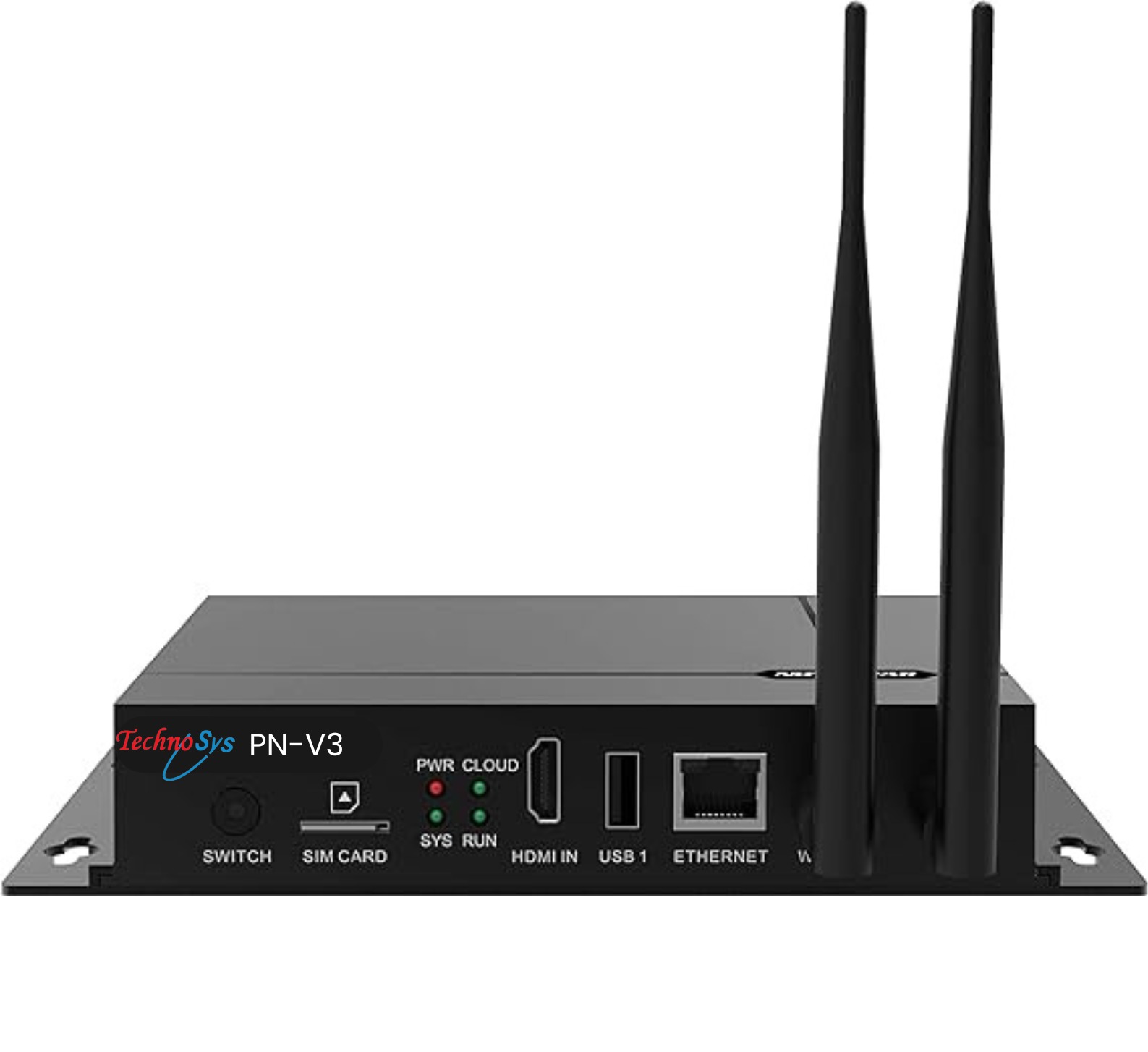

PN-V3

Specification	Value
Brand	Technosys
Manufacturer	Technosys
Package Dimensions	33.2 x 19.3 x 6.4 cm; 581 g
Hardware Interface	HDMI
Special Features	Portable
Display Technology	LED
Display Type	LED
Screen Resolution	1920 x 1080
Wattage	5 Watts
Batteries Included	No
Batteries Required	No
Type of Cable or Wire	HDMI
Connector Type	HDMI
Form Factor	Portable
Mounting Type	Tabletop Mount
Item Weight	581 gm
